I. Structure and Working Principle of the Pump

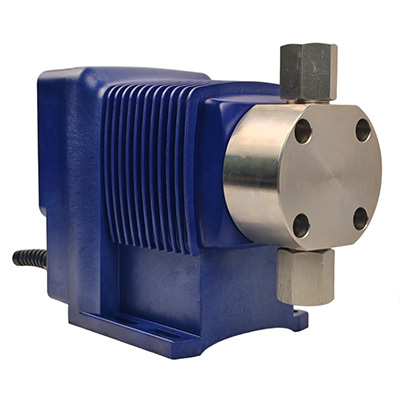

The EX-B series products adopt stepper motors and are diaphragm metering pumps with high regulation precision and highly integrated automatic control functions. In the design of the EX-B series products, the flow rate is controlled by the rotation of the stepper motor. The rotational motion of the motor is transmitted to the eccentric cam through a reduction gear, and then converted into reciprocating motion. When the diaphragm moves back and forth and the liquid is transported through the check valves for inhalation and exhalation, the volume of the pump chamber changes. The reciprocating speed will change the flow rate, while the inhalation rate can remain unchanged under any flow rate conditions.
II. Characteristics
High regulation ratio
Using stepper motors, highly integrated industrial electronic control is employed, enabling precise control and feedback, and featuring a high adjustment ratio.
• Anti-corrosion and high precision
It can independently and precisely control the inhalation/exhalation speed, and can transport liquids with high viscosity and those that are prone to decomposition. This ensures the high repeatability of chemical dosing (±1%).
High integration degree
Small in size, high in integration, and easy to install.
• Automatic Control
The EX-B can automatically operate according to various settings such as analog, pulse, batch or interval batch operations.
Wide voltage operation
The EX-B series operates with a wide power supply voltage (100-240VAC) and can be used in all countries/regions.
• Standardly equipped with a rich set of control signal interfaces
Standardly equipped with pulse signals, current signal reception and current signal output, STOP, emergency stop, alarm and RS485 bus interfaces, it can meet various complex working conditions.
• Humanized design, LED indicator lights
The visual screen enables a clear and intuitive understanding of the dosage. The LED indicator lights on the control unit can clearly display various operating conditions and alarm situations.
• Standard PVDF pump head
The exterior is made of high-strength composite materials, with excellent structural design, which further enhances the chemical corrosion resistance.
Overpressure alarm function
If the output pressure exceeds the operating pressure of the pump, the metering pump will automatically stop running and give an alarm, thus preventing the pump from being damaged due to excessive pressure.
• With IP65 protection rating
With a waterproof and dustproof rating of IP65, it is suitable for harsh working conditions.
Low pulsation output
Quickly reduce the frequency and intensity of the strokes, achieve precise drug addition through the motor, innovate the drug addition process, and embark on a new chapter of intelligent drug addition for the metering pump.
