Choosing the right metering pump directly decides the stability, accuracy and service life of your chemical dosing system. Many project owners face problems including inaccurate flow, chemical corrosion, leakage or frequent breakdowns due to improper metering pump selection. Understanding different metering pump types and critical selection rules helps engineers and plant managers avoid common pitfalls.
Diaphragm metering pump is the most popular metering pump type on the global market. It is divided into electromagnetic diaphragm metering pump (solenoid metering pump) and motor-driven diaphragm metering pump. The electromagnetic metering pump uses electromagnetic coil to drive the PTFE diaphragm directly. It features compact size, low cost and simple structure, suitable for low flow rates normally below 50L/h and working pressure under 10 bar. It is widely adopted in swimming pool water treatment, small cooling tower dosing and laboratory chemical addition. Its limitation is lower pressure resistance and limited stroke adjustment range.

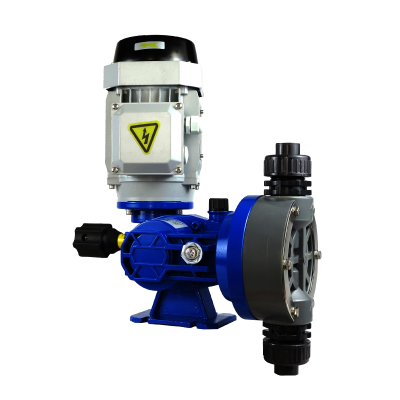

Motor-driven diaphragm metering pump uses electric motor and crank mechanism to drive diaphragm movement. It supports wider flow and pressure ranges, runs smoothly for continuous 24-hour operation, and can integrate digital control modules. Digital metering pump, a premium motor-driven diaphragm metering pump, is equipped with microprocessor control, real-time flow display, fault alarm and industrial communication functions, perfect for medium and large dosing plants requiring automatic closed-loop control.
Plunger metering pump, also called piston metering pump, is designed for high-pressure working conditions. It can handle discharge pressure up to hundreds of bar, commonly used in oil & gas, high-pressure chemical synthesis and supercritical fluid processes. However, plunger metering pumps rely on packing seals, so there is a risk of slight leakage. It is not recommended for highly corrosive or expensive toxic chemicals unless special sealing materials are configured.
Other less common metering pump options include peristaltic metering pumps, which use roller squeezing hose to transfer liquid. They are leak-free and easy to maintain, but hose wear limits pressure and long continuous running time, suitable for low-pressure sanitary dosing in food and pharmaceutical industries.
Five core factors must be checked before selecting your metering pump. First, flow requirement: confirm minimum and maximum dosing volume. Second, working pressure: the pump rated pressure must be higher than actual pipeline backpressure. Third, chemical medium: match wetted parts with fluid properties. Strong oxidants and acids need PVDF pump heads and PTFE diaphragms. Fourth, control method: manual adjustment for simple fixed dosing; 4-20mA, pulse or Modbus signal for automatic control linked with sensors. Fifth, suction condition: check suction lift, viscosity, gas release. Off-gas chemicals such as sodium hypochlorite need degassing accessories.
Accessories are also essential to protect metering pump performance. Back pressure valves prevent siphoning and stabilize output flow. Pressure relief valves protect the pump from damage when discharge pipeline is blocked. Calibration columns allow on-site flow verification, pulsation dampeners reduce pressure pulsation caused by reciprocating strokes.
To sum up, there is no universal metering pump for all scenarios. For small low-budget low-flow dosing, electromagnetic diaphragm metering pump is cost-effective. For continuous industrial automatic dosing with medium flow and pressure, digital motor-driven diaphragm metering pump is preferred. For ultra-high pressure process injection, plunger metering pump is the solution. By matching pump type, material, parameters and supporting accessories to process requirements, users can get reliable metering pump performance and reduce long-term maintenance expenditure.
